IR Touch Screen Frame for 42"-65" The TV Shield PRO Portrait

RRP:
Your Price:
$9,999.99 (You save )
SKU:
IR-4265
Shipping:
Free Shipping
Quantity:
Share:


outdoor interactive tv the tv shield pro warranty

The TV Shield PRO Portrait Outdoor Touch Screen Display Cabinet & Weatherproof TV Enclosure is Revolutionizing Interactive Outdoor Advertising





Contact Us for Pricing & Availability:

800-331-2628



Video Demonstration for The TV Shield PRO weatherproof tv touch screen

View Customer Photos weatherproof touchscreen TV touch screen displays


Available in Sizes 42-65”

Compatible TV Screen Sizes:

Outdoor Touch Screen TV Case TV Size

Max TV Screen Size (without bezel):
Model Width Height
TVSPRO4250P 27.5" 45.5"
TVSPRO4255P 29.5" 49.5"
TVSPRO6065P 34.5" 58.5"


Drivers
Windows Driver link <<
Mac Driver link <<


More Information:

Brochures and Spec Sheets

Installation Help:

Click here to access Protective Enclosures Company's helpful installation instructions.

Indoor & Outdoor Touch Screen TV and Display Enclosure Overview:



The TV Shield PRO Portrait Touch - This Touch Screen Frame is for The TV Shield PRO Portrait Enclosures which Protect 42-65" TVs and Digital Displays


The TV Shield PRO Portrait Touch is a weatherproof, secure and robust outdoor touch screen display and weatherproof TV enclosure that is made in the USA. We have combined The TV Shield PRO Portrait enclosure and our IP-65 rated IR touch frame to offer the best solution for outdoor touch screen needs. With The TV Shield PRO Portrait Touch you can use any standard off the shelf flat screen TV, completely enclose it and turn it into an indoor or outdoor interactive touch screen. Featuring extremely tough metal housing that encases the TV and a high strength shatter-resistant anti-glare polycarbonate front shield, this innovative water-resistant interactive display solution eliminates the risk of having to replace an expensive outdoor touch screen TV or interactive digital sign if the screen breaks. The TV Shield PRO Portrait also allows you to enjoy the newest TV technologies on the TV of your choice, rather than being restricted by the technology lag of weatherproof TVs. Below we have included details about both The TV Shield PRO Portrait enclosure and The TV Shield PRO Portrait IR touch frame.



The TV Shield PRO Portrait Outdoor TV Enclosure:



The TV Shield PRO PortraitTM is a weatherproof, secure and robust protective outdoor display enclosure that is made in the USA and built completely from triple coated steel for ultimate strength and durability. Designed for use with any standard indoor TV or digital display, it is ideal for commercial and professional markets where a monitor is needed in a vertical orientation. With its sleek and aesthetically pleasing picture frame design, it will seamlessly integrate into any high-end environment. Developed for outdoor areas, The TV Shield PRO Portrait’s proprietary "Quick InstallTM" system is faster to install and maintain than other metal TV enclosures and the front frame opens effortlessly with our tabbed lift-off system.

The internal mounting system can be used with any VESA pattern from 75x75 to 600x600 with depth and height adjustment (with supplied hardware) which allows for perfect placement of the screen as well as easily added input and back of display access. In addition, The TV Shield PRO Portrait can be used with any external standard VESA mount. The entire unit is locked down with our high strength security screw system that requires a specific tool to remove the front panel and comes with a thermostatically controlled and filtered air circulation system boasting multiple 120mm high powered fans and 60ppi filters. The TV Shield PRO Portrait is a professional-grade weatherproof digital display and outdoor LED TV enclosure which comes standard with a shatter proof anti-glare polycarbonate front panel for ultimate safety of your equipment and patrons. Unlike safety glass, which can shatter, polycarbonate does not. The TV Shield PRO Portrait also comes standard with a custom-built aluminum commercial-grade power strip with a 12 ft. cord and 15-amp breaker.

Protective Enclosures Company is the leading US manufacturer of protective TV enclosures and PEC's enclosures are currently used in over 23,000 locations in 38+ countries!



 outdoor touch screen digital display touch frameThe TV Shield PRO Portrait Weatherproof IR Touch Frames:



Our touch frames can turn almost any computer imaged surface into a touch interactive device. Both indoor and outdoor options are available. Examples of "computer imaged surface" include flat panel displays (LCD, LED, plasma), all-in-one PCs, projection screens, video walls, whiteboards or white walls - up to 200" diagonally.  It is compatible with Windows, Mac, Linux and Android.



interactive display touch the tv shield pro Embedded IR sensors inside the touch frame emit and receive invisible infrared light beams in front of the computer imaged surface.  Whenever your finger or an object breaks through this light grid, it is seen as a touch point which is same as a left mouse click. Your touch can also perform all the standard tablet gestures and multi touch functions.









The TV Shield PRO Portrait Touch Features:

  • Incredibly accurate and responsive outdoor touchscreen technology that includes 2 point touch (can upgrade to 10 touch points for Windows and 4 touch points for Mac). Touch capability can work with both non-touch and touch screen TVs or digital signs.
  • Compatible with almost every 42" to 65" TV or digital display. You can pick and choose what technology and features you want in a TV.
  • Sleek and aesthetically pleasing picture frame design for integration into any high-end environment.
  • 5-year warranty for guaranteed peace of mind.
  • Protection equal to IP-55 standards.
  • Paintable powder coated steel housing. Custom colors available.
  • 60ppi filtered ventilation system with dual or quad thermostatically controlled 120mm fans.
  • Hardware and components are stainless steel or powder coated (using our advanced chemical pre-wash system) for ultimate durability against harsh threats like saltwater air.
  • Includes high strength shatter-resistant anti-glare polycarbonate front shield.
  • Front panel can be easily removed with our tabbed lift off system.
  • High strength security screw system that locks the entire unit and requires the provided tool to access the interior of enclosure.
  • ExactSeal triple sealing system for superior dirt & water intrusion prevention.
  • All ventilation and cable pass-through systems are protected against bug and water intrusion with 60ppi filters and our ExactSeal system.
  • Internal mount with depth & height adjustment for perfect placement of screen and rear input accessibility.
  • Ample interior space behind the TV for installation and protection of cable boxes, media players, amplifiers or any other component required.
  • The TV Shield PRO Portrait can be used with any external standard VESA mount (floor, ceiling, wall, pole) and can be flush mounted against (not in) the wall with professional installation and separate hardware.
  • Built-in commercial-grade power strip (with 12 ft. cord and 15 amp breaker) for additional protection in harsh environments.

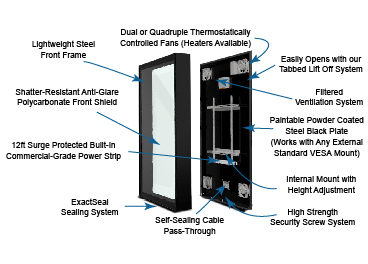

Weatherproof Touch Screen TV Solution Diagram





Outdoor Digital Sign and Weatherproof TV Cabinet Specifications:



Touch Screen Details:

Technology

Infrared (IR)

Touch Sensor Description

Embedded IR sensors form invisible light grid in front of the display.

Interface

USB

Functionality

mouse/tablet emulation

Operating Systems

Windows XP, Vista, 7, 8, Mac & Linux.

Number of Touch

2-10 for Win 7 or 8., 1-4 for Mac.

Standard Sizes

10.4" to 84" diagonal.

Custom Design

Available up to 200+" diagonal. No tooling charge, no minimum order.

Purchase Options

Complete Assembly or Framed Segments

Activated by

Finger, gloved hand, stylus.

Activation Force

Zero

Life Expectancy

60 million touches minimum

Use under Sunlight

Yes.  Adjust the angle to reduce the glare.

Light Transmission

95 to 100%

Operating Temp.

-20 to 70 C

Storage Temp.

-30 to 80 C

Warranty

2 years

Tech Support

Life-time free

Driver Update

Life-time free

For Integration into standard display

May be suitable.  Please check the dimensions.

The TV Shield PRO Portrait Touch is available for the following enclosure sizes. Call to place an order.

Compare the Outside Dimensions of Your TV or Display with Dimensions Below:

The TV Shield PRO Portrait TM 42-50” DIMENSIONS

• Fits Most 42” to 50” Displays
• MAX INTERIOR DIMENSIONS: 29” W x 47” H x 4.4” D
• EXTERIOR DIMENSIONS: 31.3” W x 49.5” H x 7.8” D
• WEIGHT: 78 LBs

The TV Shield PRO Portrait TM 52-55” DIMENSIONS

• Fits Most 52” to 55” Displays
• MAX INTERIOR DIMENSIONS: 31.5” W x 51.5” H x 4.4” D
• EXTERIOR DIMENSIONS: 33.8” W x 54” H x 7.8” D
• WEIGHT: 96 LBs

The TV Shield PRO Portrait TM 60-65” DIMENSIONS

• Fits Most 60” to 65” Displays
• MAX INTERIOR DIMENSIONS: 36.5” W x 60.5” H x 4.4” D
• EXTERIOR DIMENSIONS: 38.8” W x 63” H x 7.8” D
• WEIGHT: 110 LBs

*Please measure the outside dimensions of your TV, or the planned TV, and compare to the inside dimensions listed on this page.


Details:

  • Sleek and esthetically pleasing picture frame design for integration into any high-end environment
  • High strength shatterproof and glare resistant polycarbonate front shield
  • 60ppi Filtered ventilation system with dual thermostatically controlled 120mm fans
  • High strength security screw system that locks the entire unit and requires the provided tool to access the interior of enclosure
  • ExactSeal triple sealing system for superior dirt & water intrusion prevention
  • Internal mount with depth & height adjustment for perfect placement of screen and rear input accessibility
  • Built-in commercial-grade power strip (with 12 Ft. cord and 15amp breaker) for additional protection in harsh environments
  • Paintable powder coated steel housing. Custom colors available

outdoor touchscreen tv cabinet






* Please note that anti-glare front shields will significantly reduce the appearance of sun glare on the screen, however, anti-glare coating by nature does have a matte finish that may slightly cause the clarity of the image to not quite be as high as the image on the actual TV screen







The TV Shield PRO Portrait Weatherproof TV Box Protects Against:



Protects Displays, Monitors and TVs from Everything in Any Environment:

  • Water (Rain, pool splashes, sprinklers, wash downs)
  • Harsh saltwater air
  • Moisture (Condensation, dew, steam, humidity, dampness)
  • Dust (Grime build up)
  • Tampering (Burglary, theft, vandalism, attempted destruction of product)
  • Pests (Bugs, insects, birds)
  • High impact (Storms, branches, baseballs, footballs, golf balls, other flying objects)
  • Extreme temperatures (Hot climates and cold environments)
  • Sun (We have protective film options available that defend against sun ray damage)



Additional The TV Shield PRO Portrait Weatherproof LED TV Enclosure Information:

Other Things You Should Know:

  • This protective TV box is not designed to be water-submerged
  • Please note that anti-glare front shields will significantly reduce the appearance of sun glare on the screen, however, anti-glare coating by nature does have a matte finish that may slightly cause the clarity of the image to not quite be as high as the image on the actual TV screen
  • Some applications are in direct sunlight, and sun glare can be a challenge, so we recommend Energy Film for those set-ups (it blocks 98% of harmful ultraviolet radiation)
  • Thermostatic heaters are available upon request (turns on at 41° F and turns off at 47°)
  • Please measure the outside dimensions of your TV, or the planned TV, and compare to the inside dimensions listed on this page




* Protective Enclosures Company, LLC will not be held responsible for orders placed for TVs or displays over the listed specifications, and although we will accept a return, there will be a 10% restocking fee assessed, as well as the customer will be responsible for actual shipping and return shipping of the unit. If you plan to use the enclosure outside of the recommended and listed specifications, please make sure it will work for you before you order. By purchasing, you acknowledge that you have read and accept these terms and will hold harmless, PEC and all subsidiaries, business partners and officers.




Contact Us for Pricing & Availability:

800-331-2628
